Chapter 11 – SocketWireless Wi-Fi (MT800SWM)

Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342F) 142

SocketWireless Wi-Fi Configuration

The SocketModem Wi-Fi uses a 16-pin interface that provides an 802.11b wireless network conncection to

provide a complete serial-to-Wi-Fi connectivity solution.

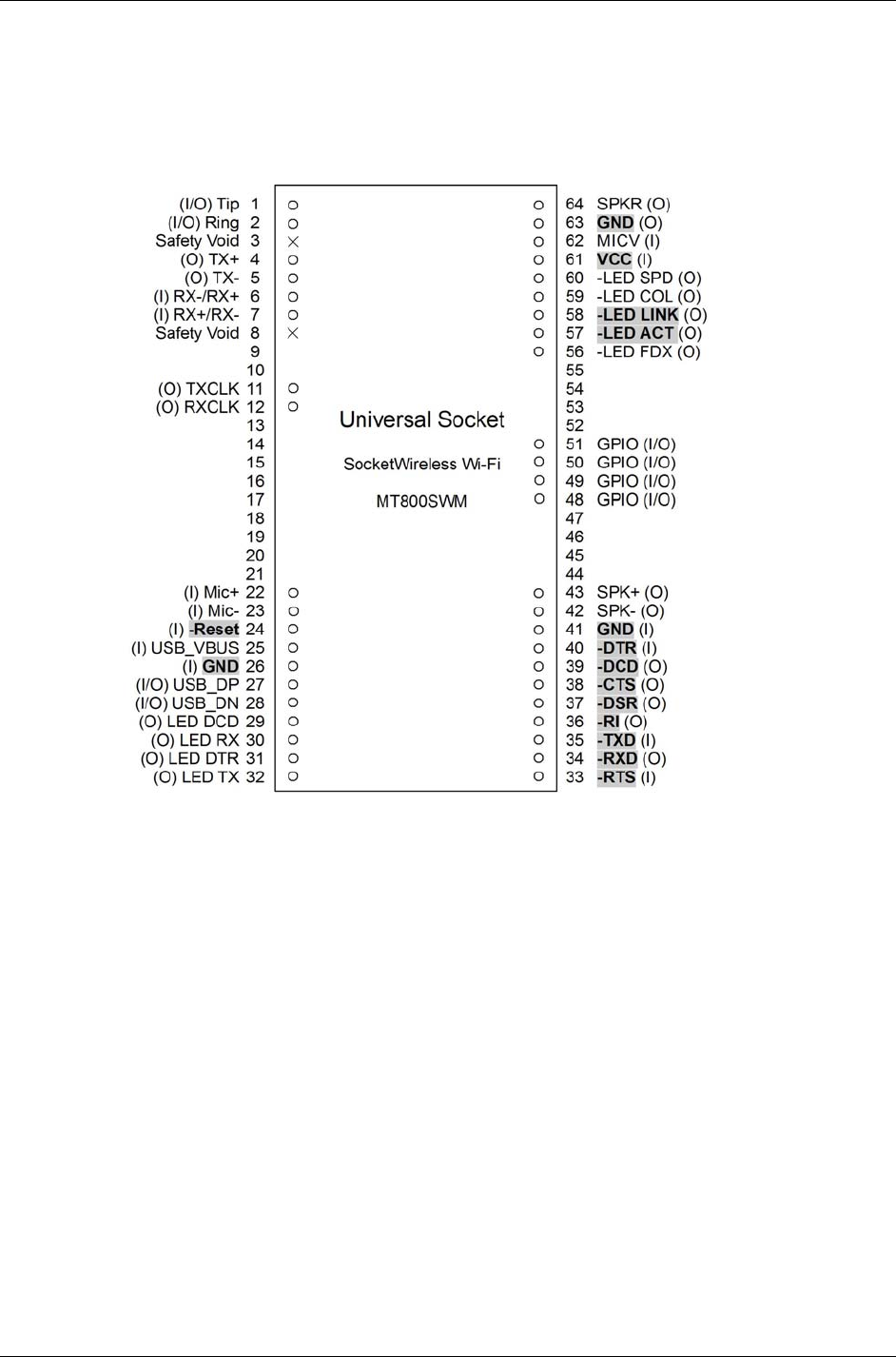

SocketWireless Wi-Fi Pinout

For pin descriptions, see the Universal Pinout Descriptions in Chapter 1.
