6 CommPlete 4000 Communications Server Overview

System Overview

Introduction

The CommPlete 4000 Communications Server is a single-segment, rack mountable

communications server. It is customized for dedicated turnkey operation of LAN-based

communications and remote access server functions. The CommPlete 4000 is a general

purpose, turnkey communications server that easily interfaces to any existing Novell, Windows

NT, or IP network.

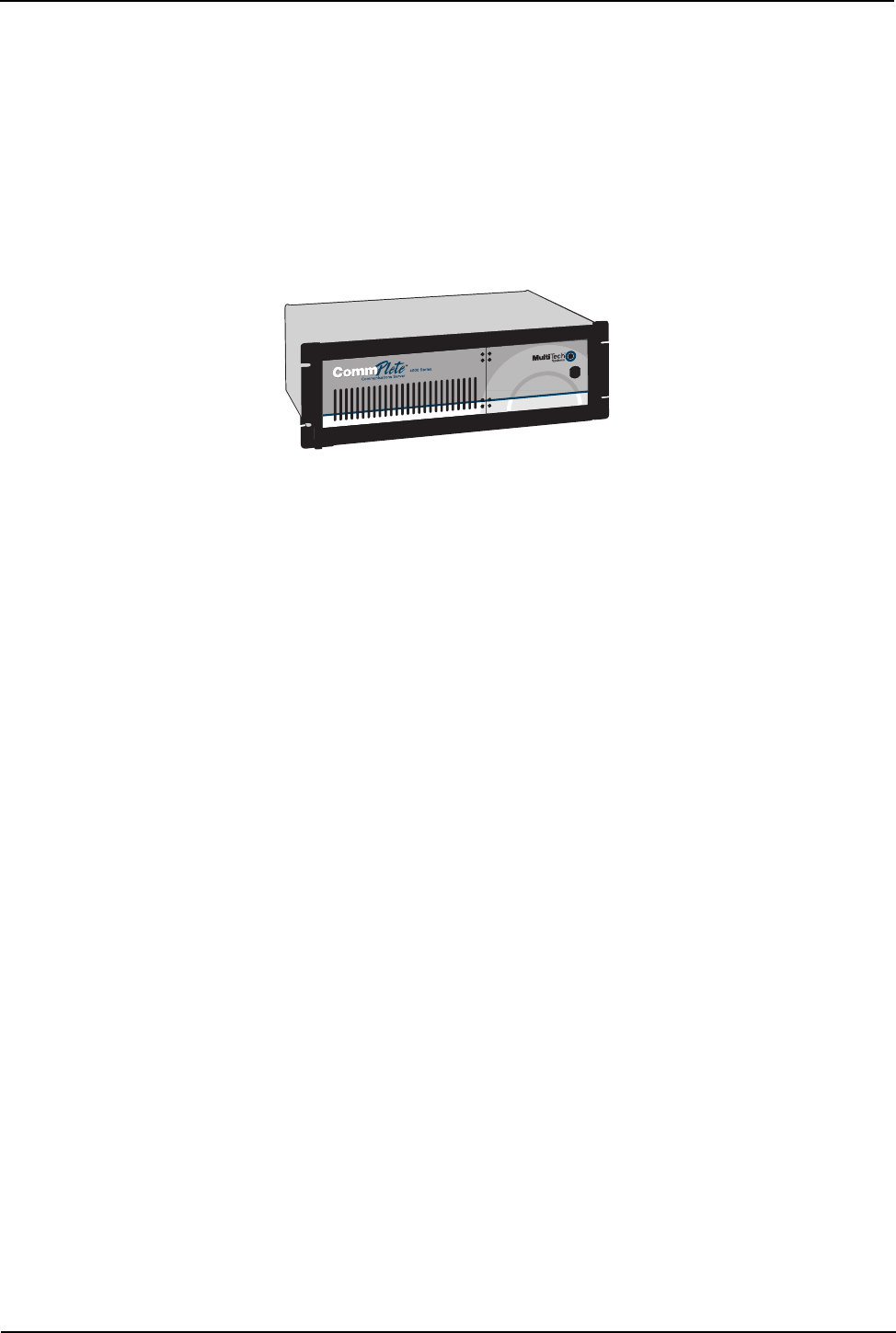

Figure 1-1. CommPlete 4000 Communications Server

Product Overview

The CommPlete 4000 is a ruggedized, highly expandable 19" rack mount device that includes a

built-in hard drive, 3.5" floppy drive, and a slot for a CD-ROM drive. It has five circuit-board

slots: four are PCI compatible, and one accommodates either a PCI or ISA card. (Each

CommPlete 4000 model is shipped with a Network Interface Card and a MultiModem ISI card.

These occupy two slots, leaving three slots for expansion cards.) A separate slot supports the

single board computer (SBC) that is the heart of the system. A user configurable card cage

allows for up to 32 V.90 (56kbps, KFlex) internal modems or up to 32 high speed serial ports.

The CommPlete 4000 is shipped with factory-installed RASExpress server software for remote-

access functionality. Each CommPlete 4000 has a default configuration that allows it to boot as

a RAS unit.

The four CommPlete 4000 models differ according to the serial interface card used. The

different serial interface cards offer, variously, serial ports for external modems, built-in

modems, or built-in modems and terminal adapters:

Model CC4S-8 with the ISI4608PCI serial card -- has serial port connections for eight

external modems.

Model CC4M-8 with the ISI5634PCI/8 serial card -- has eight built-in modems

Model CC4H-4S with the ISIHP-4S serial card -- provides four ISDN terminal adapters

using the S interface as well as eight analog modems (allowing eight concurrent

sessions)

Model CC4H-4U with the ISIHP-4U serial card -- provides four ISDN terminal adapters

using the U interface as well as eight analog modems (allowing eight concurrent

sessions)

The CommPlete 4000 has expansion capability for up to three additional MultiModem ISI circuit

cards (for additional modems/TAs). When multiple serial-interface cards are used, the

CommPlete accommodates or includes as many as 32 communications devices. While it is

most common to use multiple ISI cards all of the same type, you can equip a single CommPlete

4000 unit with more than one type of ISI card.
