DSU ProxyServer User Guide

MTPSR2-201

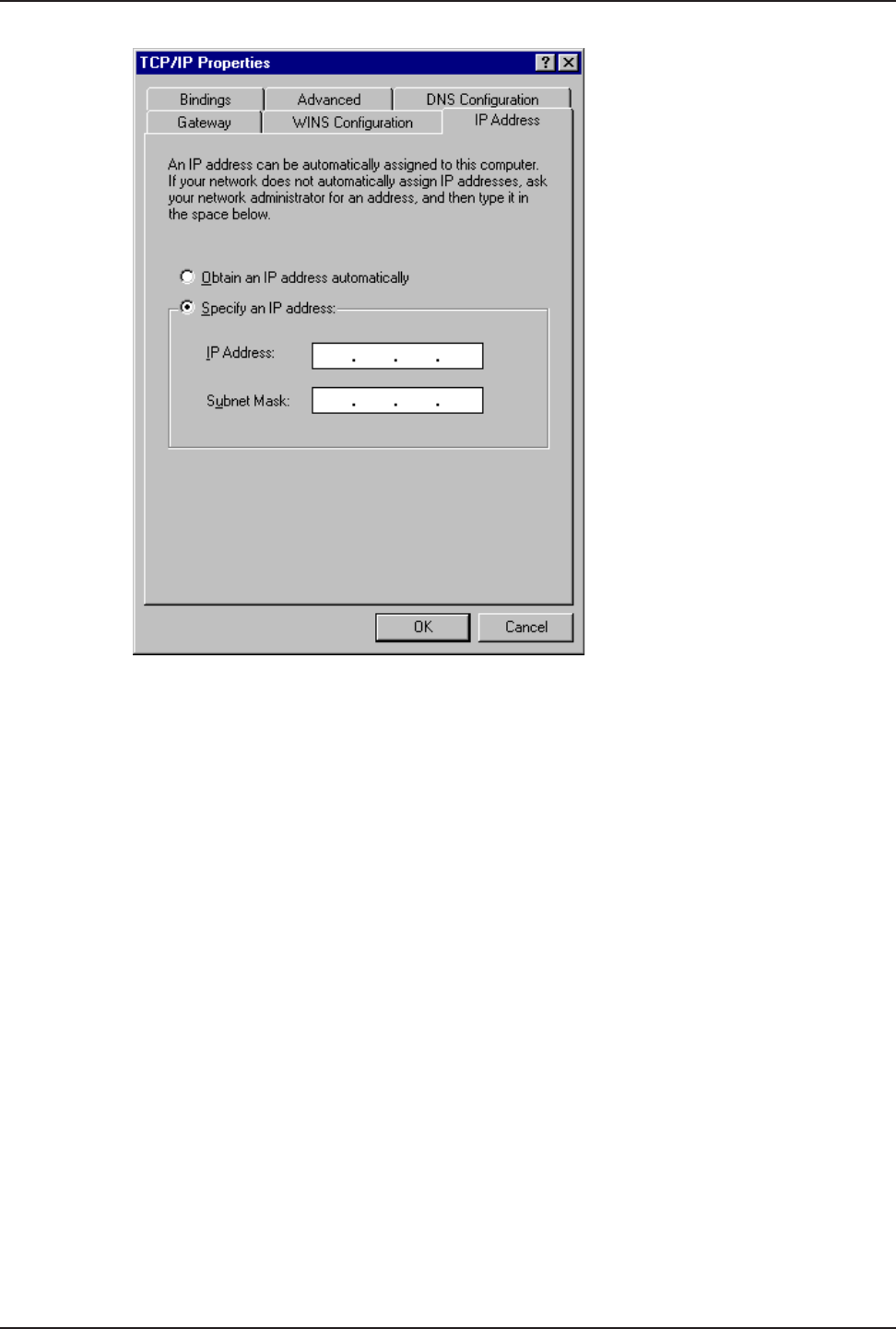

10 In the IP Address field, type the IP address assigned to your PC.

Remove the default IP address (if any), and begin typing the new address. This address is

entered in dotted decimal notation, and is comprised of four groups (octets) separated by

periods or “dots.” If a group has fewer than 3 digits, type the necessary digits an press the

space bar to move to the next group. When you are finished, verify that the IP address is

identical

the IP address you were given for your PC.

11 Click the Gateway tab.

1 2 ... 53 54 55 56 57 58 59 60 61 62 63 ... 124 125
