Chapter 10 – SocketWireless Bluetooth (MTS2BTSMI)

Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342C) 133

SocketWireless Bluetooth Configuration

Serial Configuration

The MT2BTSMI SocketWireless uses a 17-pin interface.

Note: The bolded, shaded pins are the active SocketWireless pins.

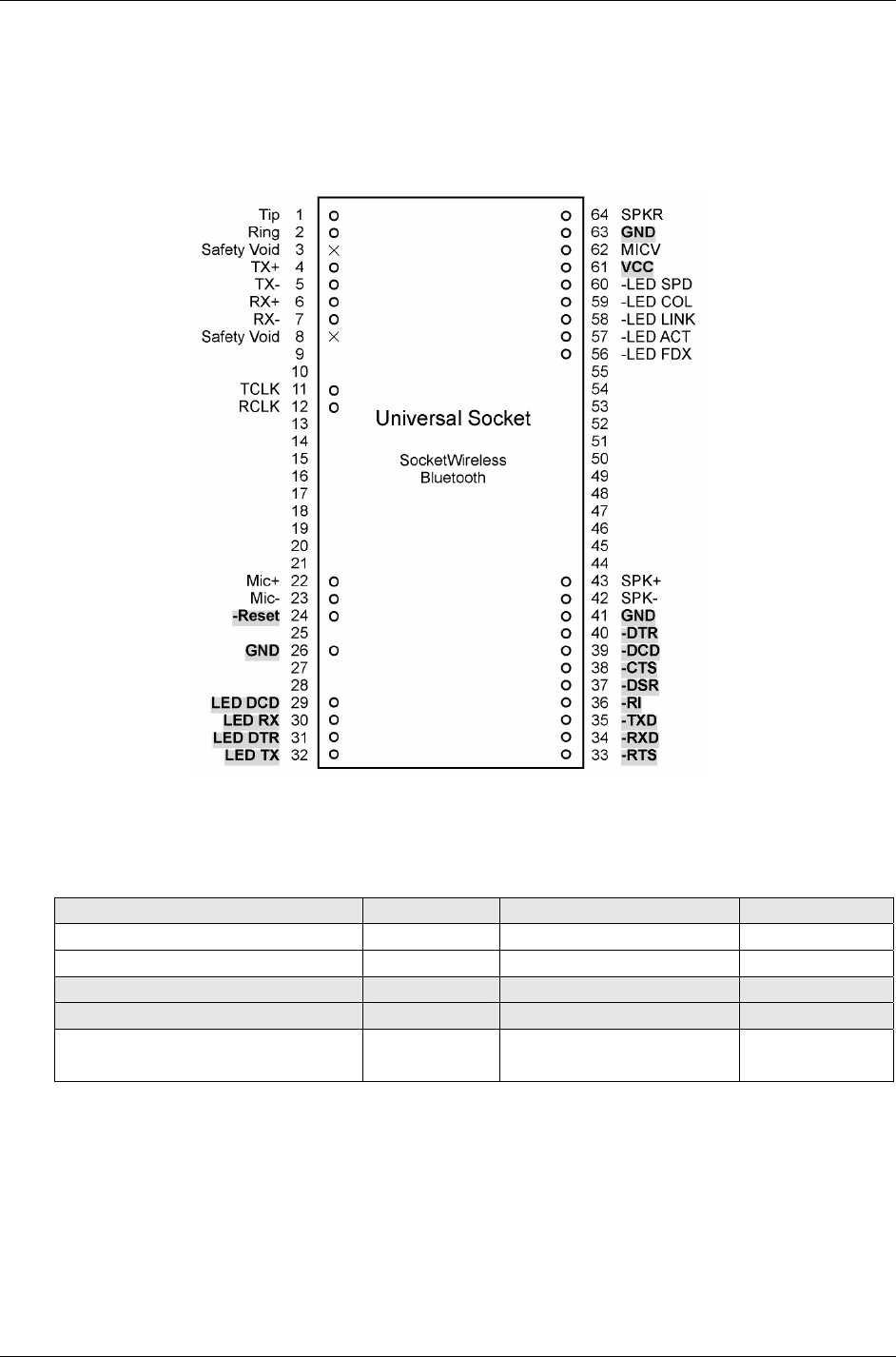

SocketWireless Bluetooth Pinout

Electrical Characteristics

3.3 V and 5 V Serial SocketWireless

Inputs Input High Input Low

–DTR (40), –TXD (35), –RTS (33) Min 2.0 V Max 0.8 V

–RESET (24) Min 2.0 V Max 0.8 V

Input Capacitance

15 pF

Outputs Output High Output Low Current Drive

–DCD (39), –CTS (38), –DSR (37)

–RI (36), –RXD (34)

Min 4 V/ 2.4 V Max 0.5 V/0.5 V (5 V/3.3 V) 3.2 mA,

7.0 mA for TXD
