Operation and Maintenance TalkAnytime User Guide

200

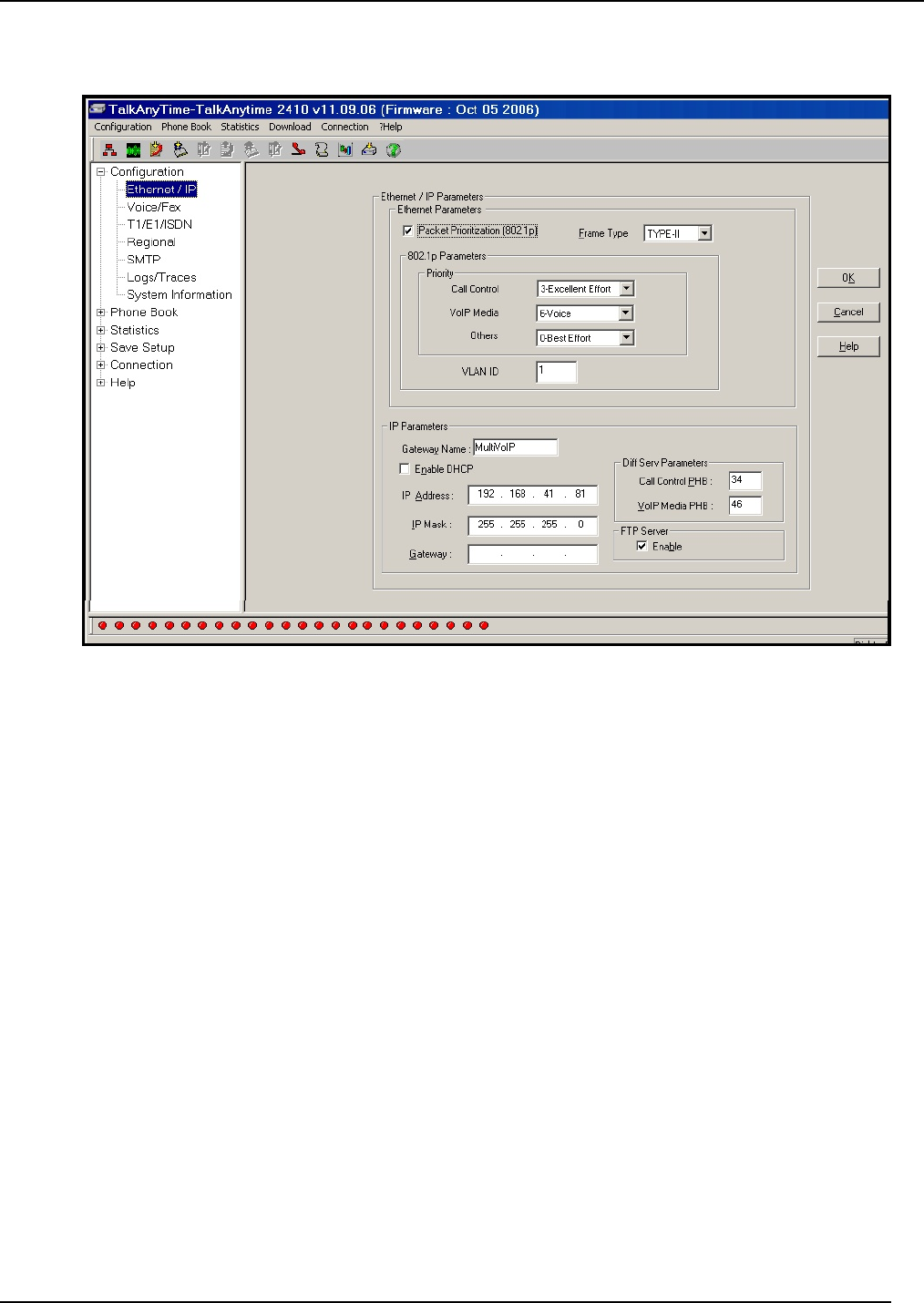

The Windows GUI gives access to commands via icons and pulldown menus whereas the web GUI does

not.

The web GUI, however, cannot perform logging in the same direct mode done in the Windows GUI.

However, when the web GUI is used, logging can be done by email (SMTP).

The graphic layout of the web GUI is also somewhat larger-scale than that of the Windows GUI. For that

reason, it’s helpful to use as large of a video monitor as possible.

The primary advantage of the web GUI is remote access for control and configuration. The controller PC

and the TalkAnytime unit itself must both be connected to the same IP network and their IP addresses must

be known.

In order to use the web GUI, you must also install a Java application program on the controller PC. This

Java program is included on the TalkAnytime product CD. ). Java is needed to support drop-down menus

and multiple windows in the web GUI.
