Chapter6—UsingtheSoftware

126 MultiVOIP®Voice/FaxoverIPGateways

DownloadingFirmware

1. TheMultiVOIPConfigurationprogrammustbeoffwheninvokingtheDownloadFirmwarecommand.Ifitis

on,thecommanddoesnotwork.

2. TousetheDownloadFactoryDefaultscommand,gotoStart|Programs|MultiVOIPx.xx|Download

Firmware.

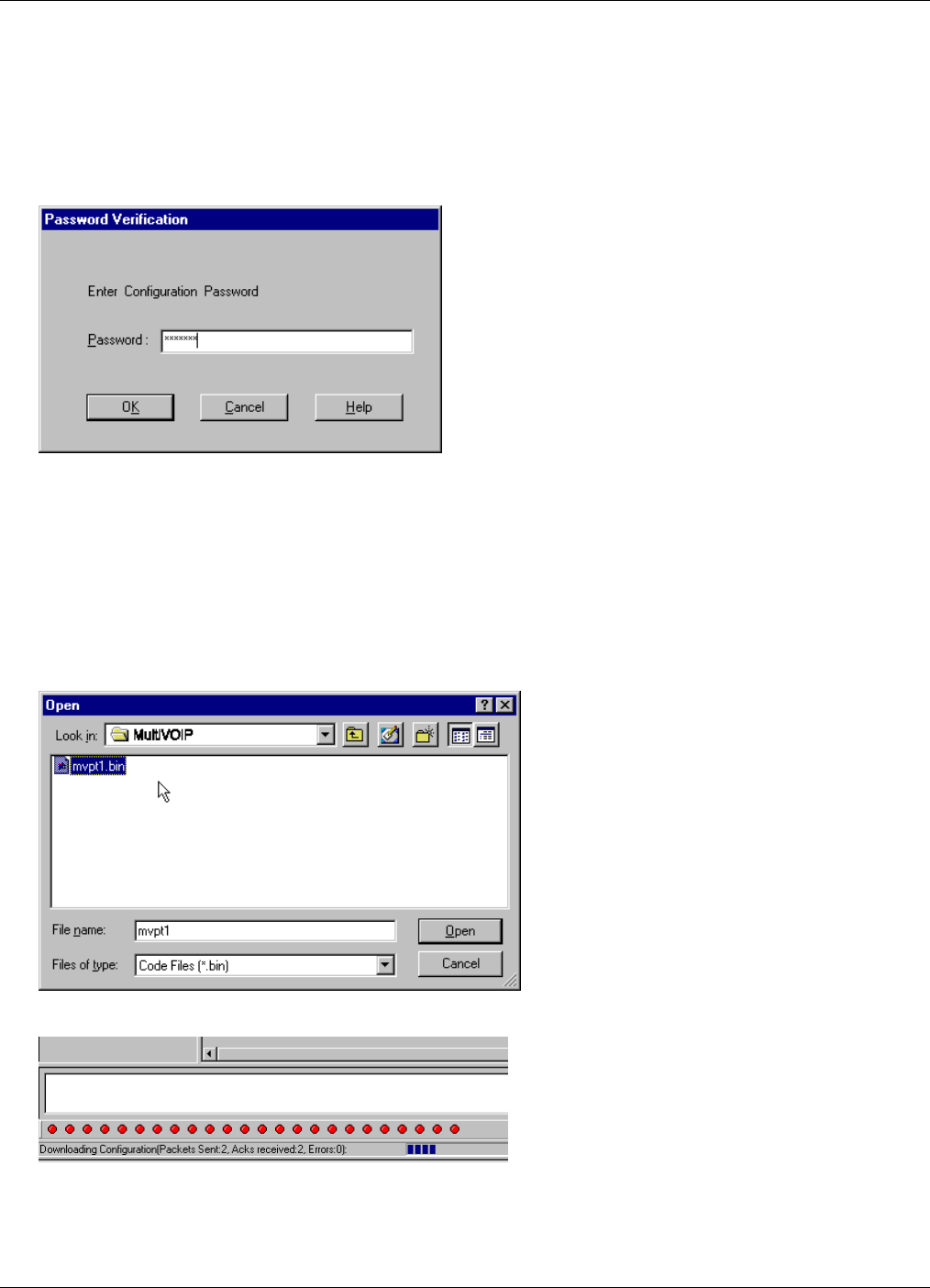

3. Ifapasswordisestablished,thePasswordVerificationdialogboxopens.



TypethepasswordandclickOK.

4. TheMultiVOIPx.xxFirmwarewindow appearssaying“MultiVOIP[modelnumber]isup.Rebootto

DownloadFirmware?”

ClickOKtodownloadthefirmware.

The“Boot”LEDontheMultiVOIPlightsupandremainlitduringthefiletransferprocess.

5. Theprogramlocatesthefirmware“.bin”fileintheMultiVOIPdirectory.Highlightthecorrect(newest)“.bin”

fileandclickOpen.



6. Progressbarsappearatthebottomofthewindowduringthefiletransfer.



TheMultiVOIP’s“Boot”LEDturnsoffattheendofthetransfer.

TheDownloadFirmwareprocedureiscomplete.

 
